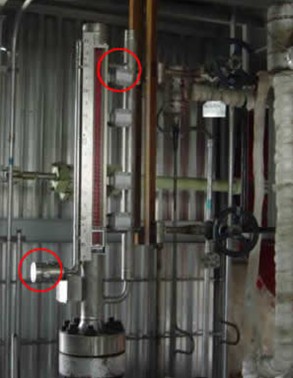

CYK1-3 Magnetic Liquid-Level Switches

The liquid-level switches are mainly applied to the liquid-level control circuits (relays) at rated voltage of 250V, rated current of 3A of the vessels in power plants, chemical tanks, liquefied gas tanks, oil tanks and other tanks which need liquid-level control. Its operational principle is that the magnetic force line of the permanent magnetic float makes the permanent magnetic

deflection elements drive the contacts of the switch, hence achieving the purpose of control. The performance of the switch is in compliance with the relevant requirements of the standards “ IEC947—5(1990) Part 1: Electrical Appliances of Control Circuit and Switches” and “GB494.2—85: Protection Class of the Cover for Low-voltage Appliance”.

Key Features

1、Explosion Proof Enclosure.
2、 Unique Concept of Magnetic Coupling, Eliminating Direct Contact With Process.
3、No Process Piping or Valves Required.
4、Easy Mounting and Adjustment; Only Small Screwdriver Required.
5、 Compact Design.
6、Suitable for High Temperature Applications.
7、Memory function.
