CYB Magnetic Liquid-level Long-distance Transmission Device

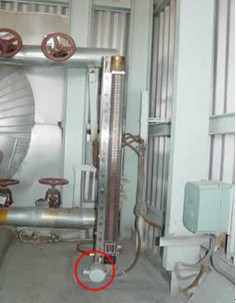

This transmitter is mounted in the magnetic liquid-level monitor (matched with CYX magnetic liquid-level monitor). Through the upward and downward movement of the float, and the action of the reed switch in the measuring guide-level caused by the magnetic coupling reaction, and the measuring signal corresponding to the liquid level, and the output current signal of 0 to 10mA and 4 to 20 mA, and connect with digital gauge or computer, hence realizing the purpose of long-distance transmission indication. This device is composed of two parts, i.e. the measuring unit and transmission unit. The measuring unit obtains signal while the transmission unit transforms the measured signal into the standard current signal. The measuring range shall be rounded to 1cm as the dimension of the reed switch is 1cm.
Major Technical Parameters
Materials for main body |
Non-magnetic materials, stainless steel, aluminum, and ABS plastics |
Ambient temperature |
-40¡æ - +70¡æ |
Control sensitivity |
10mm |
Output load |
750¦¸ |
Accuracy |
+-2.0% |
Output signal |
4 ¨C20 mA output, 24V DC, 2 wire |
0-10 mA output, 200V AC, 4 wire |
Application is for vessels which have high temperature such as boiler steam drums and high-pressure heater. Heat isolation layer will be added during manufacturing and mounting. |
 Key Features
- High Accuracy
- Suitable for High Temperature Applications: -40oF to 500oF (-40oC to 260oC)
- Designed to Provide Continuous Level Indication and Transmission of an Analog Signal for Monitoring or Control
- Simple Mounting and Installation
- High Resolution 4-20 mA DC Output
- No Process Piping or Valve Required
- Calibrates without Opening Enclosure
- Designed to Mount Externally to the CYX Magnetic Level Gauge
|
